Coating Machine |
- Customized compact design
- Best technologies for high productivity
- Easy operation and fast job changeover
|
| |
 |
| |
As the most advanced coating technologies, proposes various kinds of coating and laminating application as well as turnkey installation and process for various kinds of coating application such as adhesive, silicone, battery, sun control, electronic, magnetic tape, packaging materials as well. Based on application, we guide the coating solution to meet customer¡¯s requirements. |
|
|
| |
|
| |
|
| Application |
Coating statione |
Silicone and Adhesive
Hot melt and Wax
Packaging material
Window film
Hot Stamping foil
Flexible printed circuit boards |
|
Roll coater (2, 3, 5 rolls)
Comma coater
Air knife coater
Gravure and Micro Gravure coater
Slot Die coater
Kiss and Meyer bar coater |
|
|
|

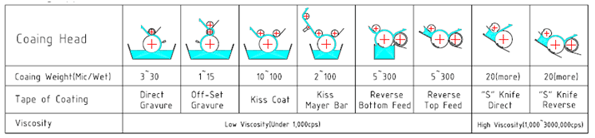

Coating method |
 |
|
Pilot coating machine |
With convertible coating station, Pilot coater was designed for research and developed and small lot product as well. There are 8 convertible coating station which is very easy changeable and test for suitable production technique prior to equipment purchasing. Find the best coating solution with our Coating technology. |
 |
| |
|
|
| Description |
Specification |
| Kind of Materials |
Plastic Films, Fabrics |
| Web Width |
Max 350mm |
| Machine Speed |
Max. 1mpm ~ 5 mpm |
| Unwinder |
Max. ¥ơ350mm |
| Coating |
Head |
Convertible to 8 kind
applications |
| Viscosity |
Max. up to 300,000 cps |
| Thickness |
Digital indication with magnetic scale |
| Dryer |
Type |
Air floating or roll supported type |
| Length |
1.5m/zone x 3 zone = 4.5m |
| Heat Source |
Electric, Steam, Thermo Hot oil or Gas |
| Laminating System |
Two roll press type |
| Rewinder |
Max. ¥ơ350mm |
| Drive and Control |
A.C Vector Motor & A.C Servo Motor |
|
|
| |
|
|
|
| |
| |
|
| |
|
|
|
|
